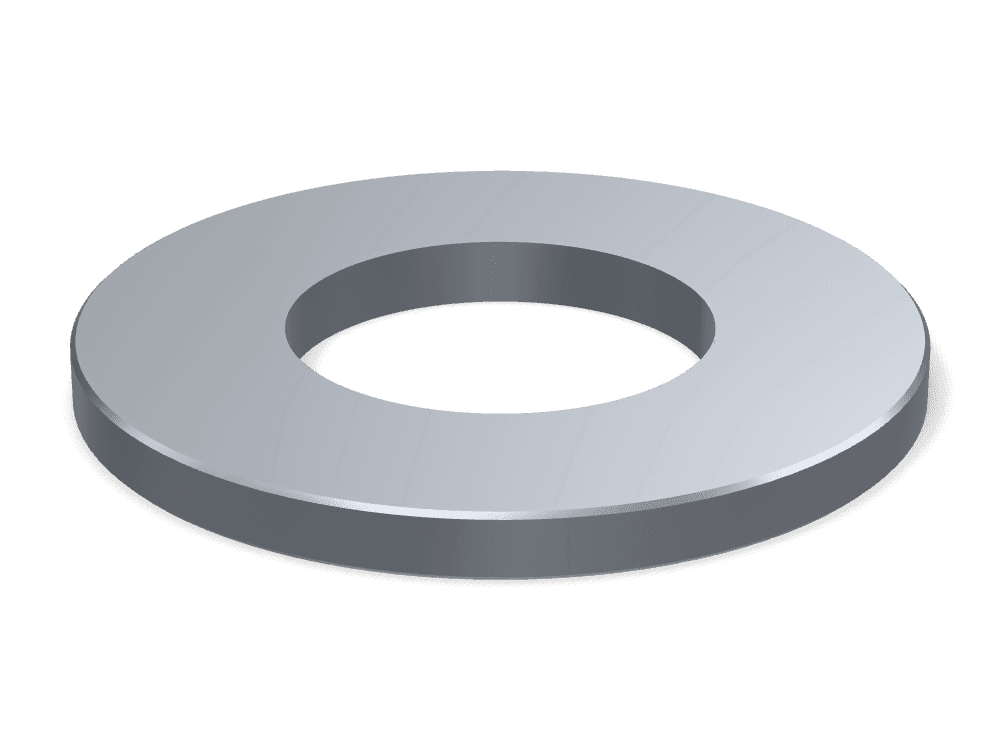

Sealing Disc DIN 470 – Steel, Plain – Image 1 of 2

Sealing Disc DIN 470 – Steel, Plain

Part number FWS02STPL6000

Sealing Disc to DIN 470, in the sizes, grades and finishes listed.

Choose your size

Size

Specifications to DIN 470

Property class / grade: Steel
Material: Steel
Surface finish: Plain
Weight: 0.236 g
Inner diameter(d1): 6.0375 mm
Thickness(h): 1 mm

Price and availability on request

Need help choosing the right part?Our team answers on WhatsApp during working hours.

28 of 28

							Action
	Ø6	Steel	Steel	Plain	6.0375 mm	1 mm
	Ø8	Steel	Steel	Plain	8.045 mm	1 mm
	Ø10	Steel	Steel	Plain	10.045 mm	1.6 mm
	Ø12	Steel	Steel	Plain	12.055 mm	1.6 mm
	Ø14	Steel	Steel	Plain	14.055 mm	1.6 mm
	Ø16	Steel	Steel	Plain	16.055 mm	1.6 mm
	Ø18	Steel	Steel	Plain	18.055 mm	1.6 mm
	Ø20	Steel	Steel	Plain	20.065 mm	1.6 mm
	Ø22	Steel	Steel	Plain	22.065 mm	2 mm
	Ø25	Steel	Steel	Plain	25.065 mm	2 mm
	Ø28	Steel	Steel	Plain	28.065 mm	2 mm
	Ø30	Steel	Steel	Plain	–	–
	Ø32	Steel	Steel	Plain	32.08 mm	2 mm
	Ø34	Steel	Steel	Plain	–	–
	Ø36	Steel	Steel	Plain	36.08 mm	2 mm
	Ø38	Steel	Steel	Plain	–	–
	Ø40	Steel	Steel	Plain	40.08 mm	2 mm
	Ø42	Steel	Steel	Plain	–	–
	Ø45	Steel	Steel	Plain	45.08 mm	2 mm
	Ø48	Steel	Steel	Plain	–	–
	Ø50	Steel	Steel	Plain	50.08 mm	2 mm
	Ø52	Steel	Steel	Plain	–	–
	Ø56	Steel	Steel	Plain	56.095 mm	2 mm
	Ø60	Steel	Steel	Plain	–	–
	Ø63	Steel	Steel	Plain	63.095 mm	2 mm
	Ø80	Steel	Steel	Plain	80.095 mm	3 mm
	Ø100	Steel	Steel	Plain	100.11 mm	3 mm
	Ø125	Steel	Steel	Plain	125.125 mm	3 mm
