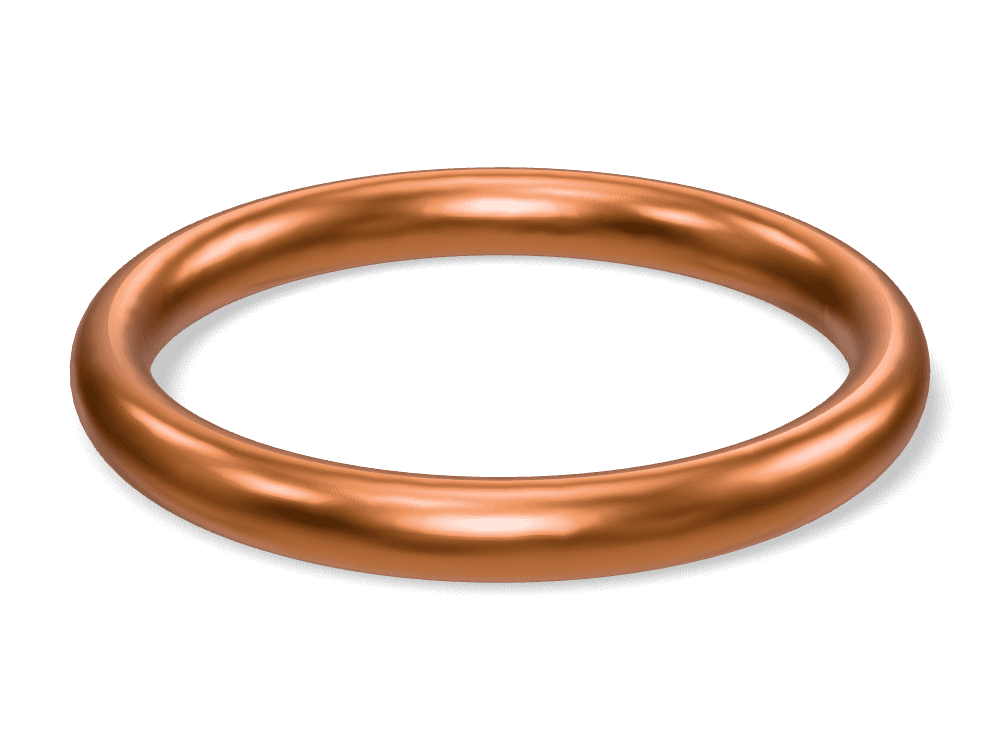

Sealing Ring Form C DIN 7603C – Copper, Plain – Image 1 of 2

Sealing Ring Form C DIN 7603C – Copper, Plain

Part number FWS03CUPL5000

Sealing Ring Form C to DIN 7603C, in the sizes, grades and finishes listed.

Choose your size

Size

Specifications to DIN 7603C

Property class / grade: Copper
Material: Copper
Surface finish: Plain
Weight: 0.2923 g
Inner diameter(d1): 5.2 mm
Outer diameter(d2): 7.4 mm
Thickness(h): 1.7 mm

Price and availability on request

Need help choosing the right part?Our team answers on WhatsApp during working hours.

21 of 21

								Action
	Ø5	Copper	Copper	Plain	5.2 mm	7.4 mm	1.7 mm
	Ø6	Copper	Copper	Plain	–	–	–
	Ø8	Copper	Copper	Plain	8.2 mm	11.4 mm	1.7 mm
	Ø10	Copper	Copper	Plain	10.2 mm	13.4 mm	1.7 mm
	Ø12	Copper	Copper	Plain	12.2 mm	15.4 mm	2.3 mm
	Ø13	Copper	Copper	Plain	–	–	–
	Ø14	Copper	Copper	Plain	14.2 mm	17.9 mm	2.3 mm
	Ø16	Copper	Copper	Plain	16.2 mm	19.9 mm	2.3 mm
	Ø18	Copper	Copper	Plain	18.2 mm	21.9 mm	2.3 mm
	Ø20	Copper	Copper	Plain	20.2 mm	23.9 mm	2.3 mm
	Ø21	Copper	Copper	Plain	21.2 mm	25.9 mm	2.3 mm
	Ø22	Copper	Copper	Plain	22.2 mm	26.9 mm	2.3 mm
	Ø24	Copper	Copper	Plain	24.3 mm	28.9 mm	2.9 mm
	Ø26	Copper	Copper	Plain	26.3 mm	30.9 mm	2.9 mm
	Ø27	Copper	Copper	Plain	27.3 mm	31.9 mm	2.9 mm
	Ø28	Copper	Copper	Plain	28.3 mm	32.9 mm	2.9 mm
	Ø30	Copper	Copper	Plain	30.3 mm	35.9 mm	2.9 mm
	Ø32	Copper	Copper	Plain	32.3 mm	37.9 mm	2.9 mm
	Ø36	Copper	Copper	Plain	36.3 mm	41.9 mm	2.9 mm
	Ø38	Copper	Copper	Plain	38.3 mm	43.9 mm	2.9 mm
	Ø42	Copper	Copper	Plain	42.3 mm	48.9 mm	2.9 mm
