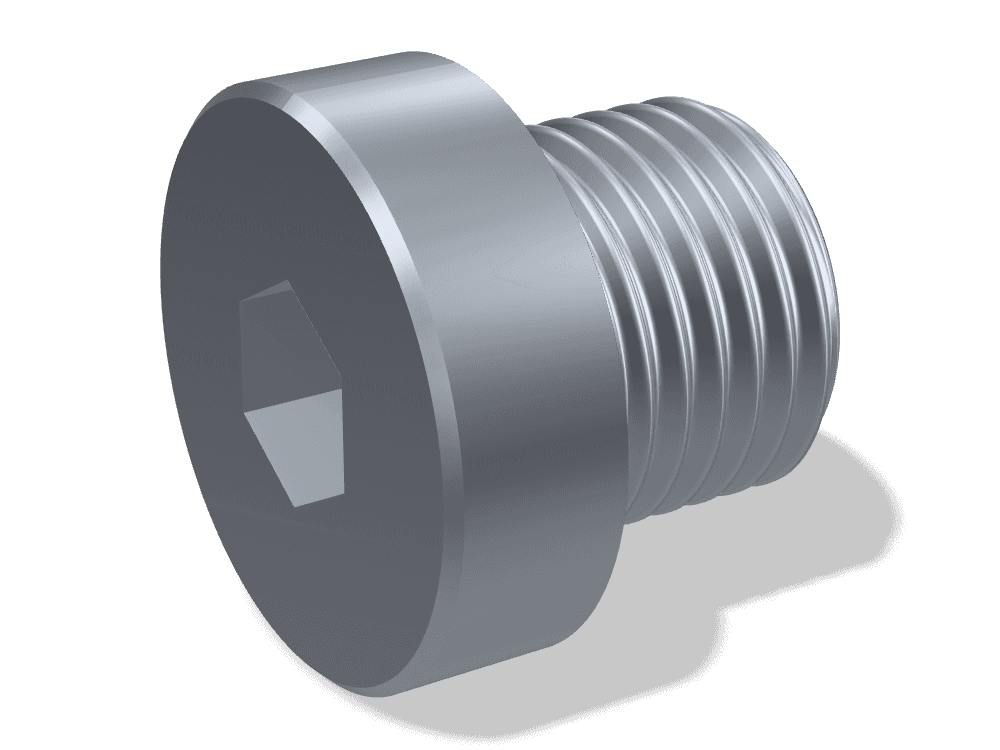

Steel, Plain
Hex Socket Screw Plug with Collar to DIN 908, in the sizes, grades and finishes listed.
- Size35 options
- 1–2 mm
35 part numbers

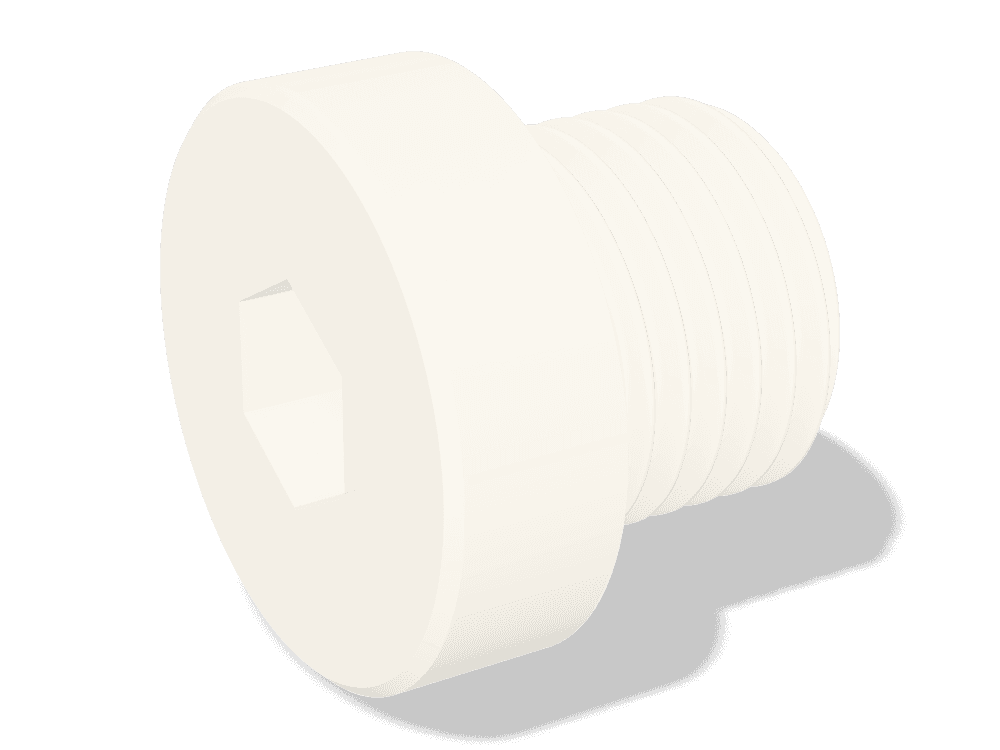

Hex Socket Screw Plug with Collar DIN 908 – Nylon PA 6.6, Plain
Part number FXS01PAPL0000
Hex Socket Screw Plug with Collar to DIN 908, in the sizes, grades and finishes listed.
Choose your size
Specifications to DIN 908
- Property class / grade
- Nylon PA 6.6
- Material
- Nylon (PA)
- Surface finish
- Plain
Price and availability on request
Need help choosing the right part?Our team answers on WhatsApp during working hours.34 of 34
| Action | |||||||
|---|---|---|---|---|---|---|---|
| G 1 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 1-1/2 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 1-1/4 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 1-3/4 | Nylon PA 6.6 | Nylon (PA) | Plain | – | 32 mm | ||
| G 1/2 | Nylon PA 6.6 | Nylon (PA) | Plain | – | 10 mm | ||
| G 1/4 | Nylon PA 6.6 | Nylon (PA) | Plain | – | 6 mm | ||
| G 1/8 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 2 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 3/4 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| G 3/8 | Nylon PA 6.6 | Nylon (PA) | Plain | – | 8 mm | ||
| G 5/8 | Nylon PA 6.6 | Nylon (PA) | Plain | – | – | ||
| M8x1 | Nylon PA 6.6 | Nylon (PA) | Plain | 1 mm | – | ||
| M10x1 | Nylon PA 6.6 | Nylon (PA) | Plain | 1 mm | – | ||
| M12x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 6 mm | ||
| M14x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 6 mm | ||
| M16x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 8 mm | ||
| M18x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 8 mm | ||
| M20x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 10 mm | ||
| M22x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 10 mm | ||
| M24x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 12 mm | ||
| M26x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 12 mm | ||
| M27x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | – | ||
| M30x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 17 mm | ||
| M30x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | 17 mm | ||
| M33x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | – | ||
| M36x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | 19 mm | ||
| M39x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | 19 mm | ||
| M42x1.5 | Nylon PA 6.6 | Nylon (PA) | Plain | 1.5 mm | – | ||
| M42x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | – | ||
| M48x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | – | ||
| M52x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | 24 mm | ||
| M56x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | 32 mm | ||
| M60x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | – | ||
| M64x2 | Nylon PA 6.6 | Nylon (PA) | Plain | 2 mm | 32 mm |
Overview
Hex Socket Screw Plug with Collar to DIN 908, in the sizes, grades and finishes listed.
Materials & Finish
| Drive type | Hexagon socket |
|---|
Standards
| DIN 908 | Hex Socket Screw Plug with Collar |
|---|
More in this category
Steel, Zinc plated
Hex Socket Screw Plug with Collar to DIN 908, in the sizes, grades and finishes listed.
- Size34 options
- 1–2 mm
34 part numbersStainless steel A2, Plain
Hex Socket Screw Plug with Collar to DIN 908, in the sizes, grades and finishes listed.
- Size21 options
- 1–6 mm

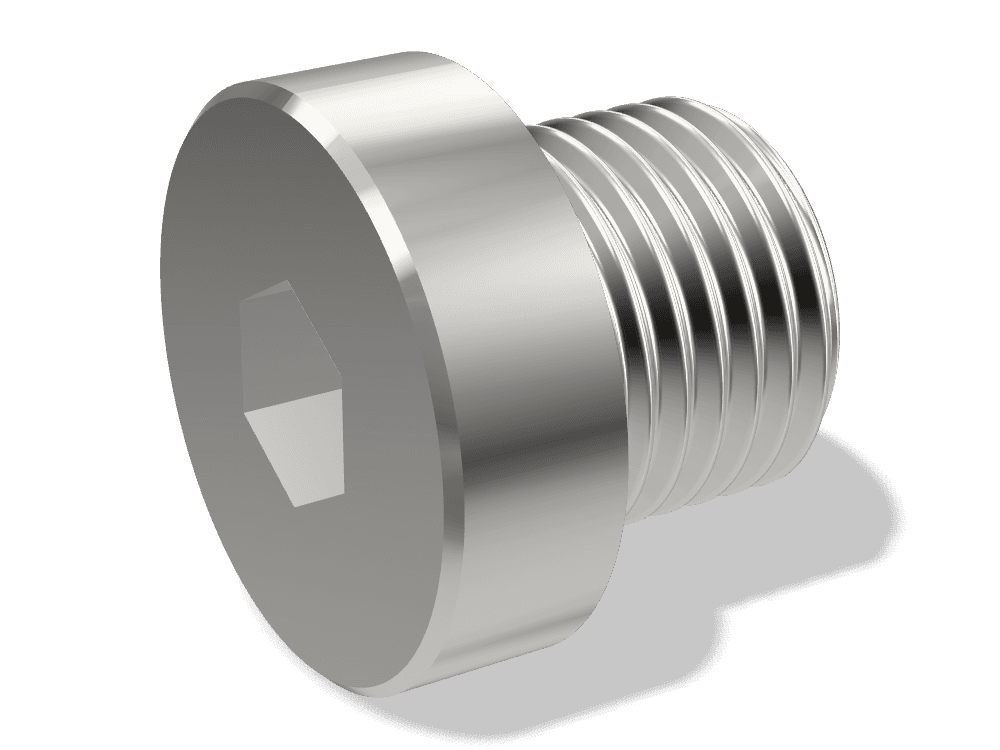

21 part numbersStainless steel A4, Plain
